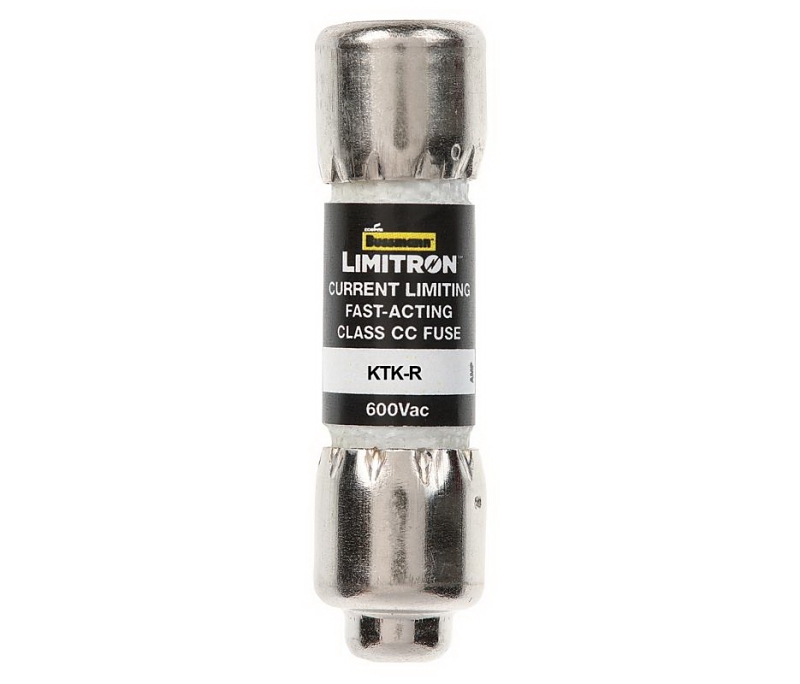

Bussmann KTK-R-10 Fast Acting Fuse, 10 A, 600 V, 200 kA Interrupt, Melamine Body

Bussmann

Bussmann KTK-R-10 Fast Acting Fuse, 10 A, 600 V, 200 kA Interrupt, Melamine Body

$34.39$34.39
Bussmann KTK-R-10 Fast Acting Fuse, 10 A, 600 V, 200 kA Interrupt, Melamine Body
  • Body Material: Melamine
  • Current Rating: 10 A
  • Diameter: 13/32 in
  • Element Type: Single
  • Indicator Type: Non-Indicating
  • Model #: KTKR10
  • UPC #: 051712420686
  • SKU: 7765969

Your shopping list will be used for pickup in-store

Product Details

Midget fuses are 13/32 in x 1-1/2 in cartridge fuses in a wide variety of volt and amp ratings to provide supplemental protection to industrial, commercial, agricultural, heating, ventilating and air conditioning equipment. Small size midget fuses often protect control circuit wiring, motor control transformers or small motors. The National Electrical Code® (NEC® ) now requires more protection of these components creating an increased replacement demand for these fuses.

Key Features

  • Provides 10X better current limitation to help prevent equipment damage caused by short circuit events
  • 200 kA interrupting rating complies with NEC Section 1109 for today's large-capacity systems
  • Fast-acting fuse helps prevent equipment damage caused by short circuit events
  • Rejection-type fuse fits both standard and rejection style holders

Item Specifications

Body MaterialMelamine
Current Rating10 A
Diameter13/32 in
Element TypeSingle
Indicator TypeNon-Indicating
Interrupt Rating200 kA
Length1-1/2 in
Rejection/Non-RejectionRejection
Terminal TypeFerrule Holder
TypeCartridge
Voltage Rating600 V
MORE DETAILS:
  • Application: For critical industrial or commercial applications that have specific current limitation requirements
